60-180kW DC Fast Charger (CCS2 + GB/T)
Dual connector IP54, CCS2 and GB/T, highway & fleet stations
- Compare 60kW, 120kW and 180kW configurations for your site.
- 7-inch touch screen and RFID access across the listed SF-ED models.
- 5m charging cable; custom lengths and payment functions available as options.

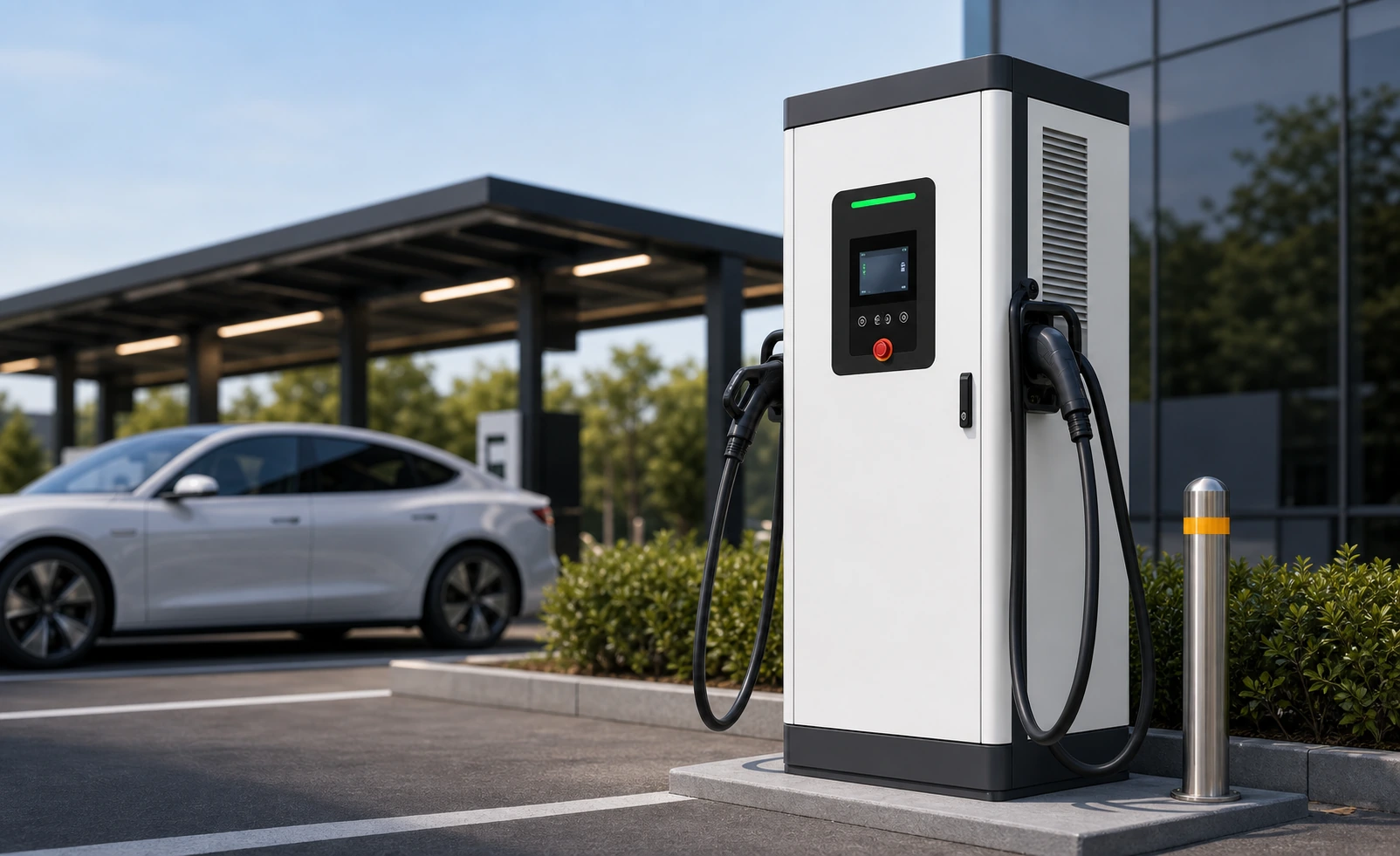

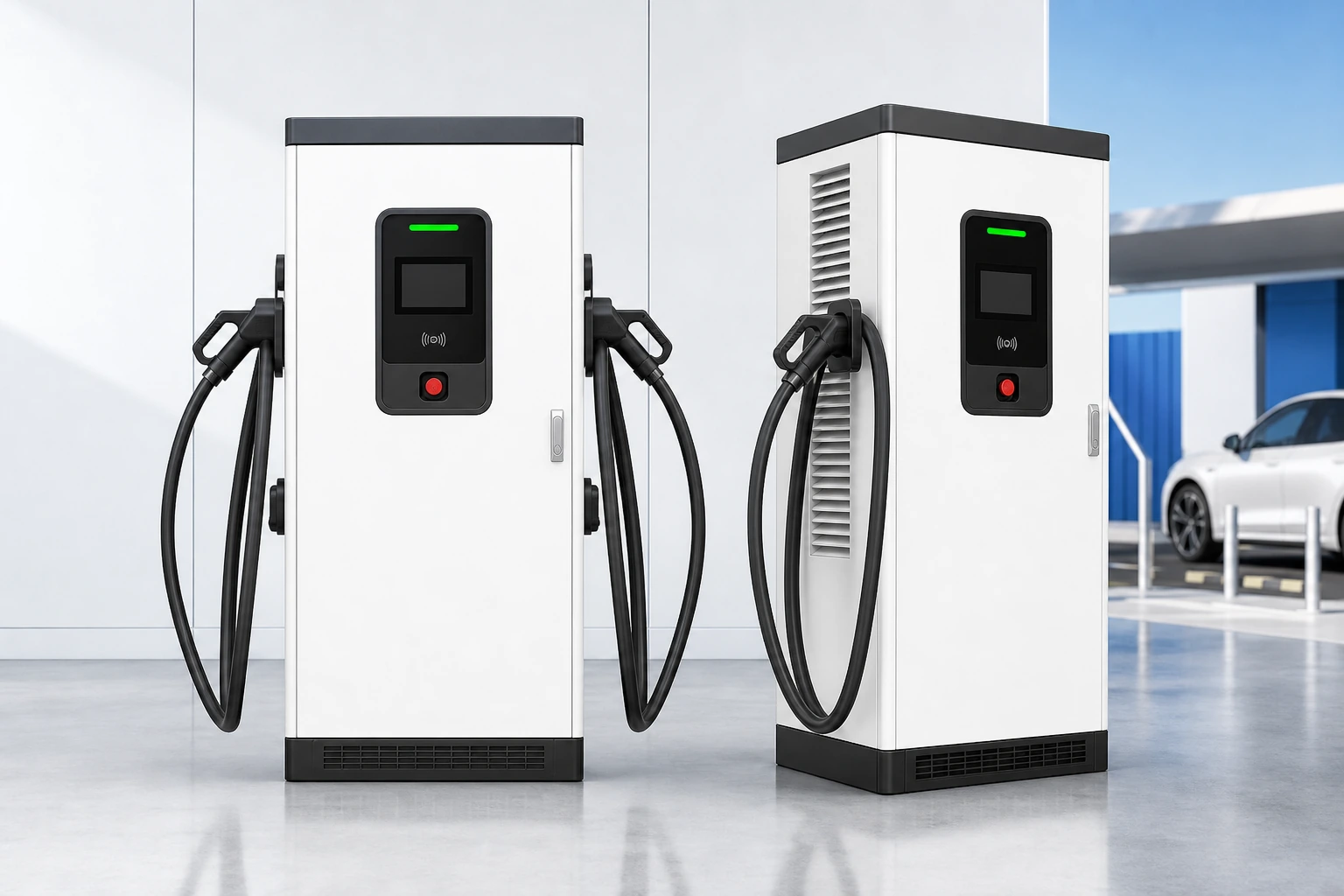

Image scope: Representative product-family appearance. Final cabinet, dispenser, connector, cable, screen, cooling configuration, dimensions, colour and branding are confirmed against the approved project specification. Model-specific drawings, datasheets and test files are available on request.
60-180kW DC Fast Charger (CCS2 + GB/T) for fleet depots, highway charging corridors, public parking operators and EPC tenders
Use this page to confirm fit, documentation needs and OEM scope before requesting a project quote from SUNFULL.
Project Fit
OCPP-ready charging platform for operator networks
OEM Scope
Connector and payment options confirmed by destination market
Compliance Review
Project documentation for site tenders and import review
Select the 60kW, 120kW or 180kW project route
Choose the closest power-level page for a focused RFQ, or remain on this family page while site capacity and vehicle demand are still being sized. These routes organise the buying decision; they do not claim that one cabinet image or one sample configuration applies to every order.
60kW configuration route
Review the current 60kW page scope, then confirm the input, connector, backend, payment, documentation and destination-market requirements in the RFQ.
Review the 60kW page →120kW configuration route
Review the current 120kW page scope, then confirm power allocation, interface, backend, documentation and site requirements for the quoted model.
Review the 120kW page →180kW configuration route
Review the current 180kW page scope, then confirm the project duty cycle, vehicle demand, connector plan, documentation and delivery requirements.
Review the 180kW page →Configuration note: A representative family image is a visual reference only; it is not proof of a particular SKU, connector count, power-sharing topology, protocol, certification or cooling system. SUNFULL confirms those items against the model-specific quotation and approved project documents.
| Category | DC Fast Charger |
|---|---|
| Power / Capacity | 60kW / 120kW / 180kW |
| Connector / Interface | CCS2 + GB/T |
| Documentation Scope | Compliance files and applicable standards are confirmed by exact model, configuration and destination market. |
| Evaluation Order | Availability and quantity are confirmed in the current quotation. |
| OEM Terms | Branding scope, MOQ, tooling and approval process are confirmed by model and project. |
| Destination-Market Review | Applicable standards, labels and document package are confirmed before order approval. |
SUNFULL can support logo, label, packaging and manual customization for qualified OEM orders. Compliance files are confirmed by exact model, destination market and selected configuration.
Send the target country, grid standard, connector requirement and expected annual quantity so the sales team can prepare a realistic quote.
For a faster RFQ, include project location, application scenario, quantity, required certification, branding needs and target delivery window.
SF-ED model data for your DC fast charger shortlist
The SF-ED-60KW, SF-ED-120KW and SF-ED-180KW are named configurations within the SUNFULL All-In-One Smart Series. Compare their electrical demand and cabinet footprint before requesting the installation drawing and quotation for your project.
These specifications apply to the named SF-ED models, not to every charger with a similar enclosure. On a phone, scroll the model table sideways.
| Specification | SF-ED-60KW | SF-ED-120KW | SF-ED-180KW |
|---|---|---|---|
| Power class | 60kW | 120kW | 180kW |
| Listed input current | 98A | 196A | 294A |
| Cabinet dimensions (W × D × H) | 860 × 400 × 1650mm | 860 × 550 × 1760mm | 860 × 550 × 1760mm |
| DC output voltage range | 150–1000VDC | 150–1000VDC | 150–1000VDC |
| Cooling | Forced air | Forced air | Forced air |
| Display | 7-inch touch screen | 7-inch touch screen | 7-inch touch screen |
| Charging cable | 5m; custom length optional | 5m; custom length optional | 5m; custom length optional |
The listed input currents describe the charger models; they are not connector output currents or installation values for selecting breakers and cables. Ask the project electrical designer to confirm the supply voltage, protection, conductors and installation requirements for the quoted configuration.
Match the cabinet to the vehicle schedule and installation space
The 60kW cabinet has a smaller published depth and height than the 120kW and 180kW models. Use those dimensions for early layout comparison, then request the foundation drawing, service clearances and cable-routing information. Cabinet dimensions alone do not define the complete installation footprint.
The published 150–1000VDC range is an operating-voltage range, not a promise of full rated power at every battery voltage. For multi-vehicle charging, include the vehicle models, connector mix and simultaneous charging requirement so the output-current limit and power available at each connector can be confirmed.
Specify access and payment before the quotation is approved
The Smart Series specification lists RFID control, with QR-code and credit-card functions as options. Request the exact hardware, network, payment-provider responsibilities and backend acceptance scope for the chosen configuration. Optional payment functions are not included automatically.
Compare the 60-180kW DC fast charger family against your site
Use the 60kW, 120kW and 180kW routes above to narrow the selection. For a comparable quotation, send the same site and vehicle requirements for each candidate configuration.
The cabinet power rating is one part of the decision. Available site power, the vehicle's charging limit, the time available to charge and simultaneous use of the connectors all affect the configuration you need. Start with these requirements rather than selecting by appearance alone.
Not sure how to turn a vehicle schedule into a power requirement? The charging demand worked example shows how energy and parking time set an average requirement, and why that number is not a guaranteed charger output or an electrical service rating. Use your own vehicle and site figures when requesting a configuration.
On smaller screens, scroll the comparison table sideways to see all columns.
| Decision | Send with your inquiry | Confirm in the quotation |
|---|---|---|
| 60kW, 120kW or 180kW | Vehicle models, daily charging demand, parking window and available electrical capacity. | Quoted model, input requirements and the usable output range for your vehicles. |
| CCS2 and GB/T | Required connector mix, vehicles per bay, cable reach and whether both outlets will be used together. | Connector configuration and power available per outlet during simultaneous charging. |
| Operator workflow | Private fleet or public access, selected CSMS, OCPP requirements, network and payment workflow. | Included hardware and firmware options, platform responsibilities and agreed integration tests. |
| Installation and handover | Country, site layout, cable route, delivery window and required project documents. | Model-specific drawings, installation requirements, acceptance scope and delivery terms. |
Request the documents for your selected configuration
Contact SUNFULL for the applicable model datasheet, drawings, certificate scope and test documentation. Some detailed files are not published openly; document availability and the sharing scope are confirmed against the selected model and project requirements.
- Identify the power level and connector configuration you are considering.
- State the destination country and the document list requested by your installer, importer or tender.
- Ask for the model and configuration covered by each supplied document before order approval.
Still comparing product types?
Return to the DC fast charger collection for the wider range. For a depot layout and vehicle schedule, review the fleet charging project requirements before settling on charger quantity. These are selection routes, not interchangeable model specifications.
Level 3 charger cost: define your 60–180kW equipment quotation
Compare the same power configuration, connector arrangement, cable reach, access and payment options, backend requirements and delivery terms. The equipment quotation should state the selected model and included accessories; it should not be confused with a turnkey charging-site price.
Ask your local project team to identify grid connection, transformer capacity, foundations, electrical protection, cabling, permits and commissioning work separately. The available site power and the vehicle's charging limits also affect how the selected charger can be used.
Not ready with every specification? Send your country, vehicle or site type and approximate quantity first. Add power, connector and platform requirements if known. We can then discuss the configuration and applicable technical documents without you having to complete a full engineering specification before contacting us.
Request a 60–180kW project quotation or compare the DC fast charger range.
Get a project quote for 60-180kW DC Fast Charger (CCS2 + GB/T)
Tell us your market, quantity and required configuration. SUNFULL will reply with pricing, datasheet and documentation guidance after project-scope review.
