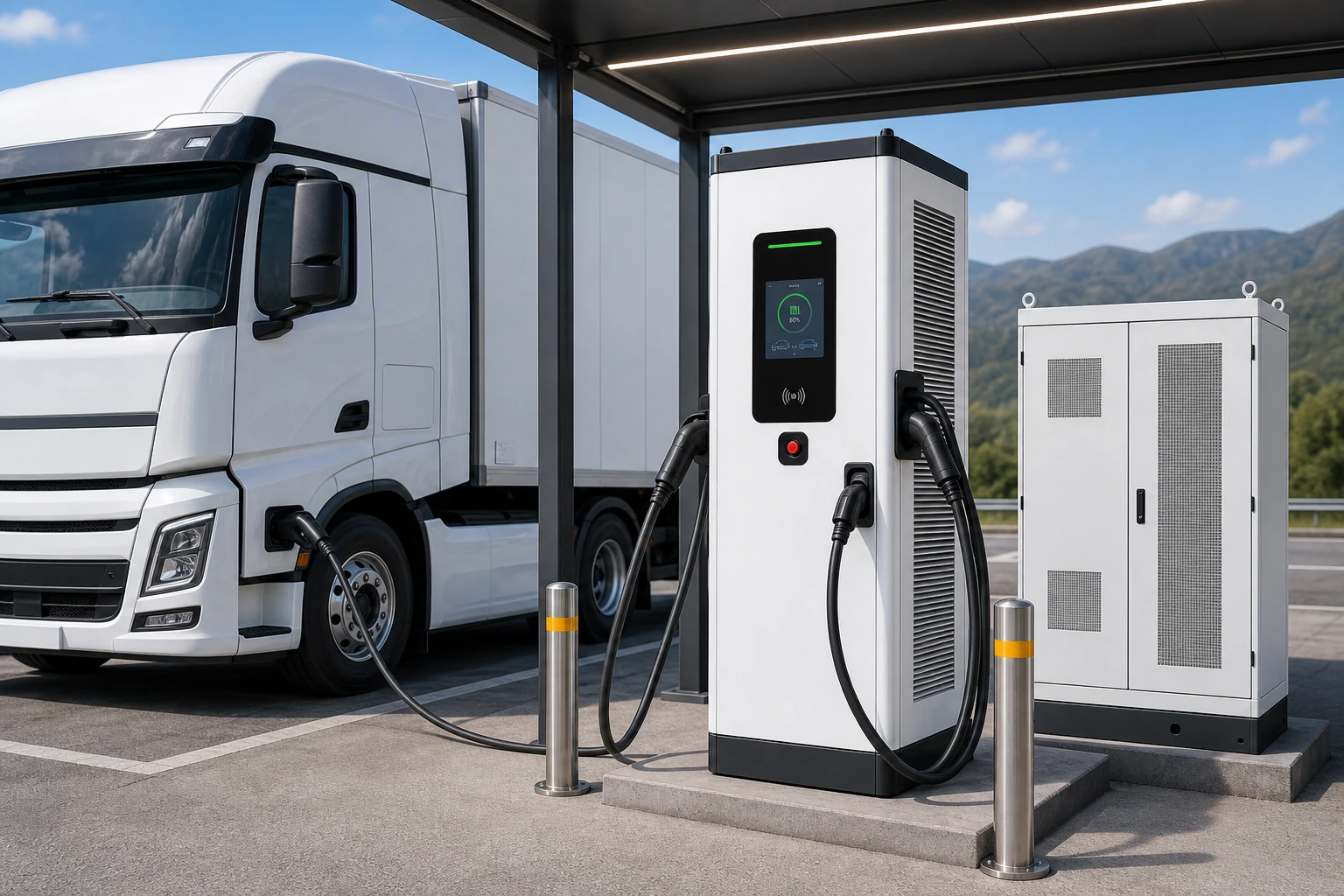

240kW Split-Type Ultra-Fast EV Charger
Air-cooled split design, 240kW per terminal, CCS2+GB/T, highway HPC
240kW Split-Type Ultra-Fast EV Charger for fleet depots, highway charging corridors, public parking operators and EPC tenders
Use this page to confirm fit, documentation needs and OEM scope before requesting a project quote from SUNFULL.
Project Fit
OCPP-ready charging platform for operator networks
OEM Scope
Connector and payment options confirmed by destination market
Compliance Review
Project documentation for site tenders and import review
Define the 240kW split system at cabinet, dispenser and bay level
A split 240kW charging system separates centralized power conversion from one or more charging dispensers. This can improve bay layout and power allocation for highway, fleet or high-turnover sites, but the project must distinguish total system power from per-dispenser and per-connector output.
Fit and operating boundaries
State the number of dispensers and connectors, maximum output per point, simultaneous charging rule and whether power is allocated dynamically across active sessions.
Share the site layout, distance between power cabinet and dispensers, cable or trench route, transformer capacity, service access and planned future expansion.
Confirm cooling method, cable current, ambient and altitude conditions, module redundancy, maintenance isolation and the effect of a module fault on available site power.
System topology
Define power cabinets, dispensers, connector count, cable routes and maximum expansion.
Power allocation
Specify total output, per-point limits, simultaneous sessions and minimum service level.
Site engineering
Provide transformer, protection, trench, foundation, drainage and maintenance-clearance data.
Acceptance
Agree OCPP or CSMS, payment, load management, alarms, FAT and site commissioning scope.
Technical and compliance file package
For a qualified 240kW split project, available topology drawings, datasheets, installation requirements, connector and allocation descriptions, protocol scope, FAT checklist and applicable compliance files can be shared privately after the dispenser and cabinet configuration is fixed.
Continue project planning
| Category | Ultra-Fast Charger |
|---|---|
| Power / Capacity | 240kW |
| Connector / Interface | CCS2 + GB/T |
| Documentation Scope | Compliance files and applicable standards are confirmed by exact model, configuration and destination market. |
| Evaluation Order | Availability and quantity are confirmed in the current quotation. |
| OEM Terms | Branding scope, MOQ, tooling and approval process are confirmed by model and project. |
| Destination-Market Review | Applicable standards, labels and document package are confirmed before order approval. |
SUNFULL can support logo, label, packaging and manual customization for qualified OEM orders. Compliance files are confirmed by exact model, destination market and selected configuration.
Send the target country, grid standard, connector requirement and expected annual quantity so the sales team can prepare a realistic quote.
For a faster RFQ, include project location, application scenario, quantity, required certification, branding needs and target delivery window.
High-Power DC Charging Project References
Use comparable project references to define power-module allocation, grid capacity, software and site-integration scope for a 240kW split charger.
-
Highway DC fast charging with BESS buffer
Compare grid capacity, peak-power demand and optional storage-buffer design inputs.
-
Germany commercial DC charging project reference
Review an EU project scope covering charging hardware, software and site requirements.
-
Solar, storage and EV charging canopy reference
See how generation, battery storage and charging loads can be reviewed as one site system.
Questions to settle before quotation
What is a split 240kW charging system?
It separates centralized power conversion from charging dispensers. The design must define total power, dispenser count, connector limits and power allocation.
Is 240kW available at every connector?
Only if the selected architecture and active-session rule allow it. Confirm per-output limits and simultaneous allocation in the quotation.
What drawings are needed for a split charger project?
Provide the site layout, cabinet and dispenser locations, transformer and protection, cable or trench routes, foundation, drainage and maintenance access.
Get a project quote for 240kW Split-Type Ultra-Fast EV Charger
Tell us your market, quantity and required configuration. SUNFULL will reply with pricing, datasheet and documentation guidance after project-scope review.
- Factory-direct quotation and lead time
- Model-specific compliance document check
- OEM / ODM branding consultation
